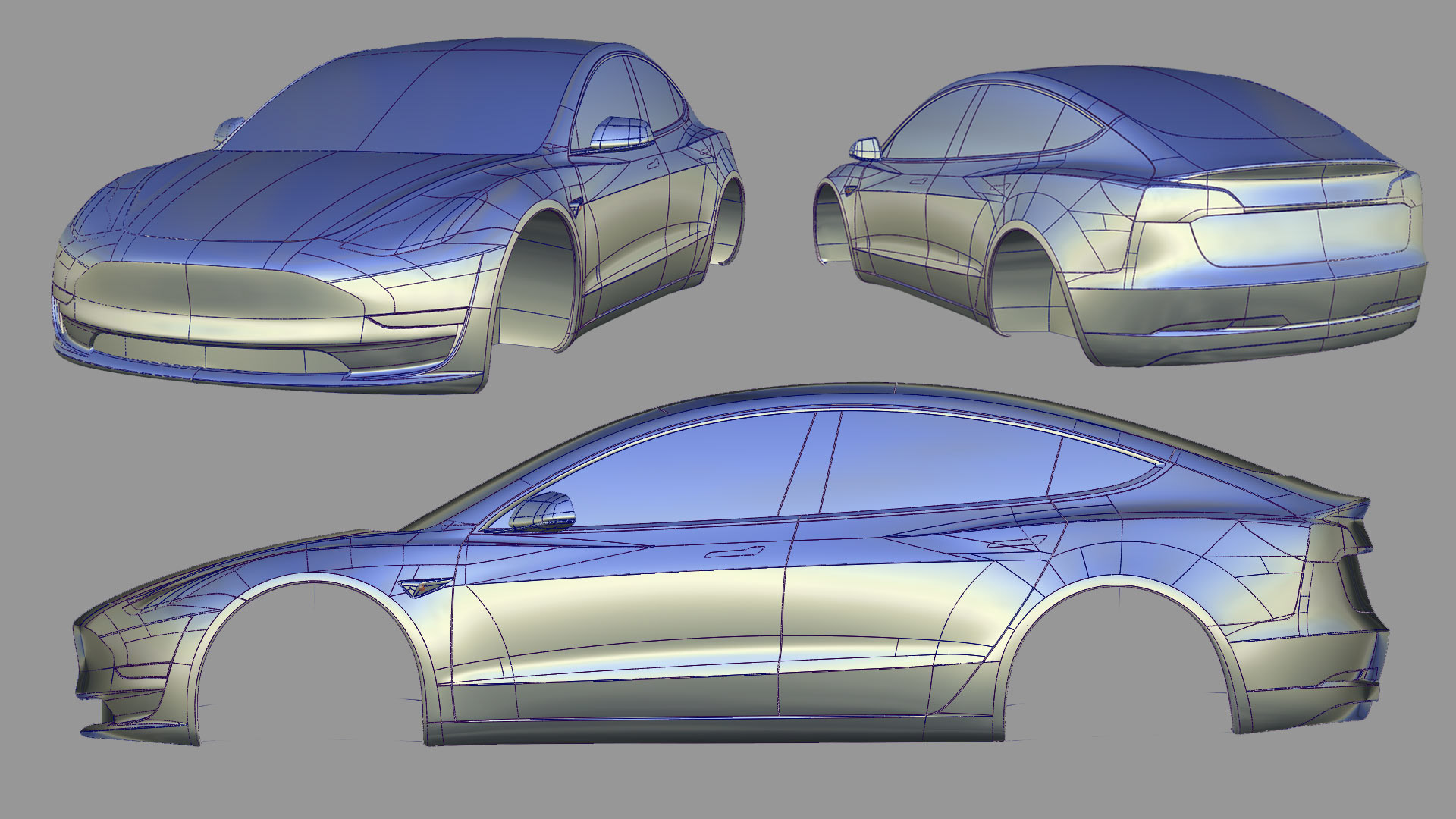

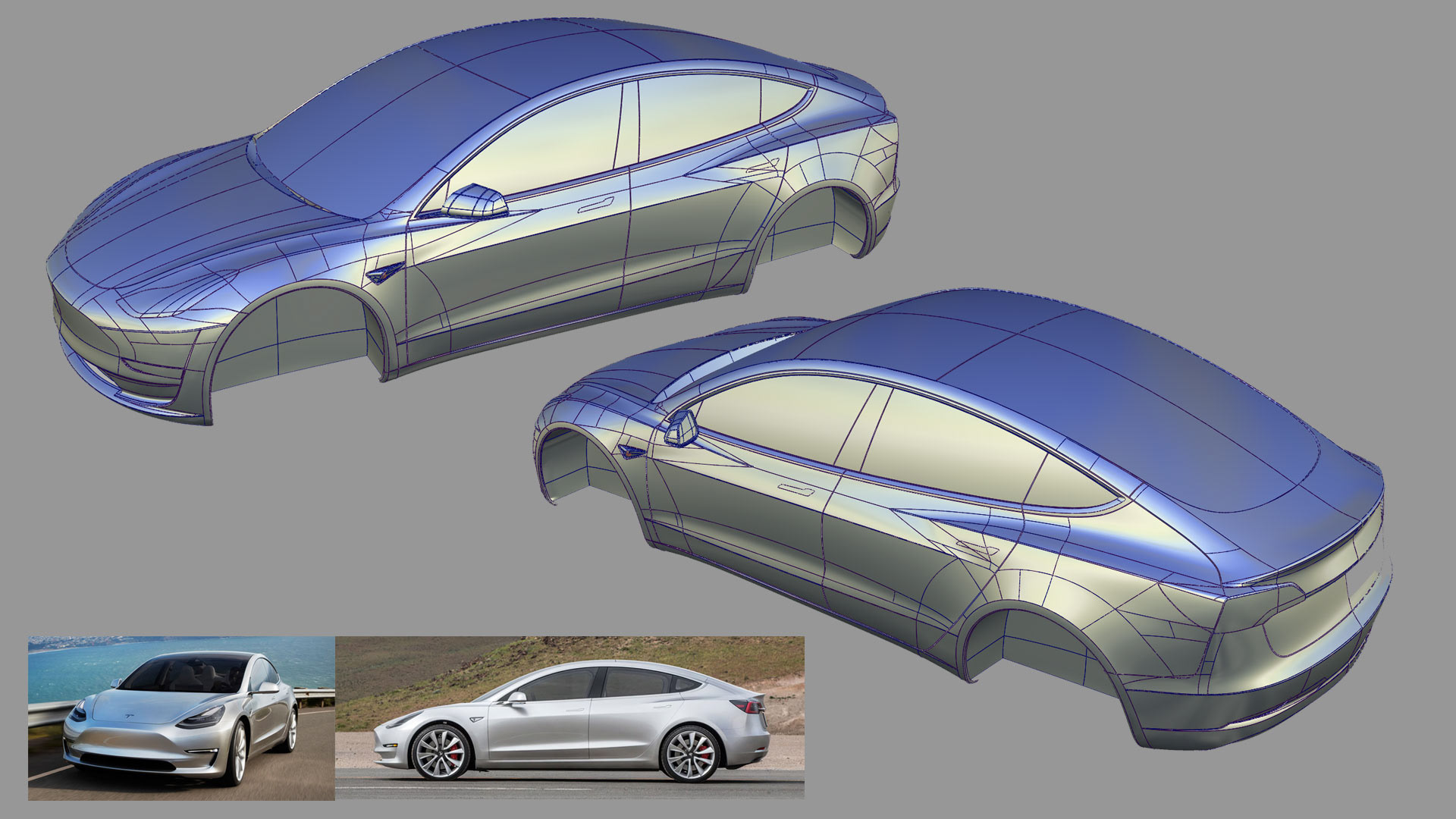

As a demonstration of my Class A digital modeling skills in Autodesk Alias, I took it upon myself to deliver an accurate and highly refined recreation of a known production vehicle. I chose Tesla Model 3 because of its great proportions, sculptural surfacing and a good balance of sharp edges and soft blends. Model 3 is a contemporary yet broadly appealing design, and it shares its surface language with many other mainstream brands. This model is work-in-progress, and as I hone my Alias surfacing skills I plan to revisit several areas on the vehicle to improve highlight control.
Scroll down to see the modeling process, including a video clip of a complete model spin.
Also, click below to download the file to evaluate in more depth.
![](https://cdn.myportfolio.com/9477f420abe1577d1df67ae769fba294/b2578108-c883-4e97-aa54-e16daedd6b4a_rw_1920.jpg?h=a365fef4a4396beb72b343df72b6360f)
![](https://cdn.myportfolio.com/9477f420abe1577d1df67ae769fba294/98f5ae9a-7676-4449-9679-87816a2816d1_rw_1920.jpg?h=a3c32684ee5af027ef700f569587af15)
![](https://cdn.myportfolio.com/9477f420abe1577d1df67ae769fba294/8d14fa09-7d40-437e-90c9-bc5c3d087661_rw_1920.jpg?h=8bcf26440cdce754b06f9dd10435b254)
![](https://cdn.myportfolio.com/9477f420abe1577d1df67ae769fba294/75f6f9c6-b4b6-499c-aa06-2bd5a556fef5_rw_1920.jpg?h=d96fe0b501b4772faceb1c04fd7a05a6)
Click below to view a complete model spin.
Class A CAS Model: Click to Watch Video
MODELING PROCESS

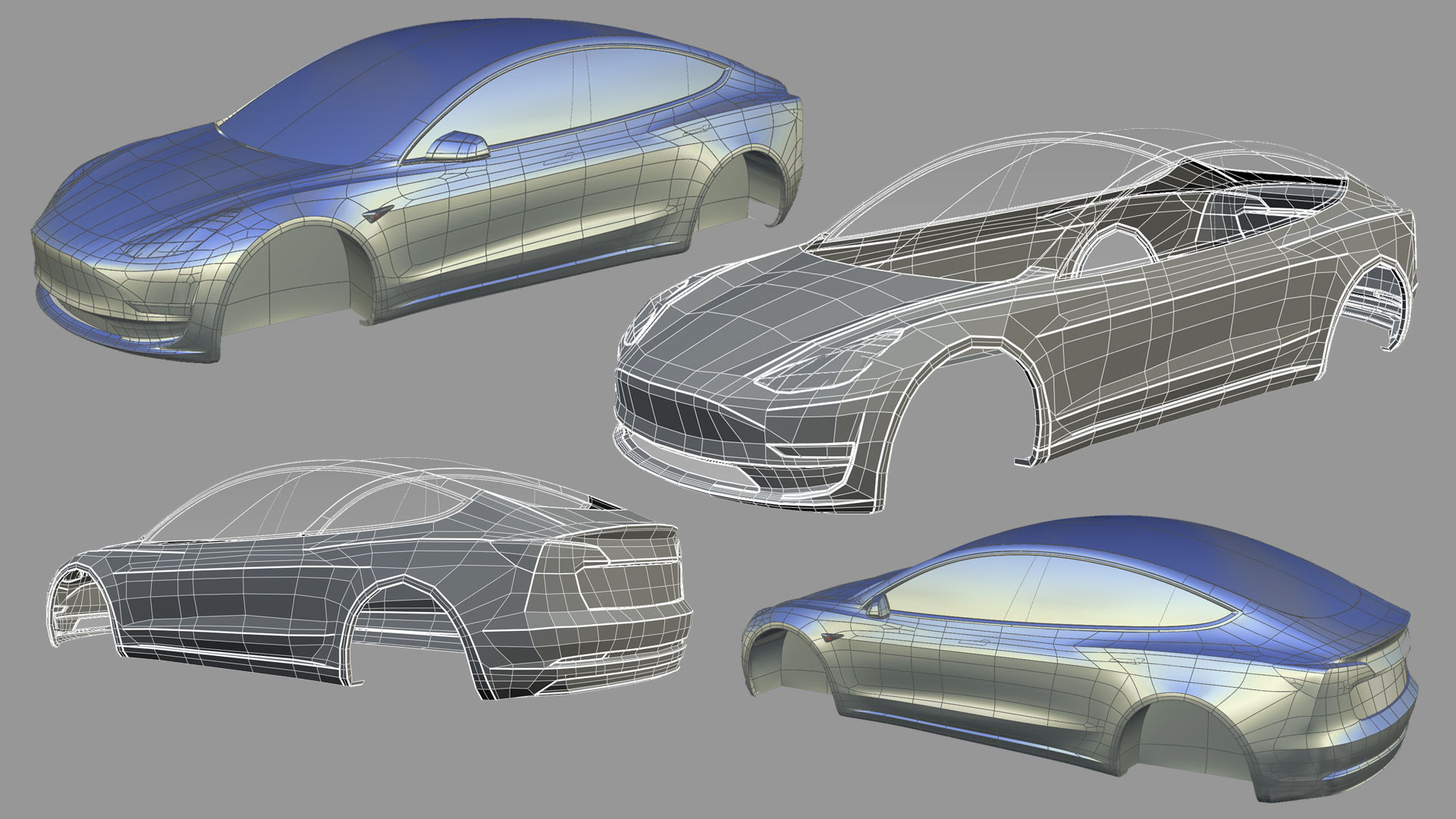

I started with a live trace of a real Tesla in augmented reality, using Gravity Sketch on a Meta Quest 3 VR headset. I was able to capture all of the key lines, along with the main surface globals. From there I build an accurate Sub-D surface model in Gravity Sketch. From there I exported the model to Alias, using it as the foundation for a full Class A NURBS model.
Scroll down to check out some videos of the modeling process!
![](https://cdn.myportfolio.com/9477f420abe1577d1df67ae769fba294/4e1a14e4-4387-48bf-b15d-e2d91867ac9d_rw_1200.jpg?h=d816b805bc389c404400f8899c1b5d6a)
![](https://cdn.myportfolio.com/9477f420abe1577d1df67ae769fba294/90e0262c-c184-4b81-bc44-7829c5c87eb7_rw_1920.jpg?h=1d0724e96ac4f9fa760e683cc3e0efce)
![](https://cdn.myportfolio.com/9477f420abe1577d1df67ae769fba294/bcda7c90-53ab-4c2b-b49b-7af76aac5d5a_rw_1920.jpg?h=9811c99da0b03b8644ffde1f8e3d6546)
![](https://cdn.myportfolio.com/9477f420abe1577d1df67ae769fba294/114b63d6-2527-4d88-b613-16adbb08b8d0_rw_1920.jpg?h=8451211517fbf69ebd45af2b8c0e59e8)
Watch the videos below for more about how I use augmented reality in my modeling process!
